maximum load: 12 t
limited production of custom design scissor lifts
made to customer's requirements and in small production runs
carrying capacity, power source, environment, space requirements - we can fulfil your wishes and requirements
with Mecanum drive

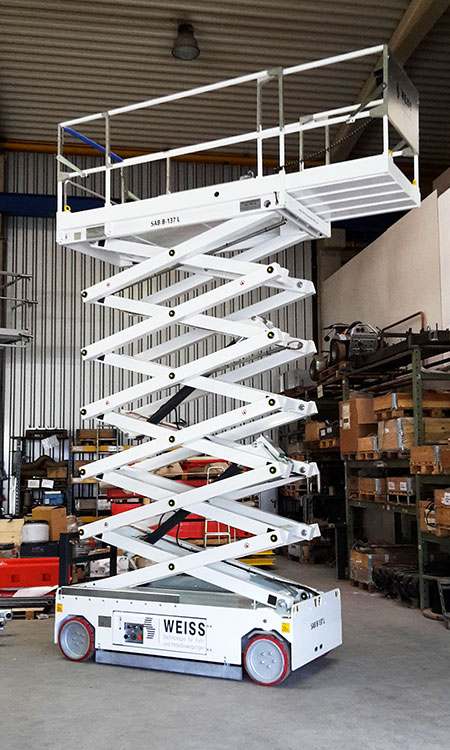

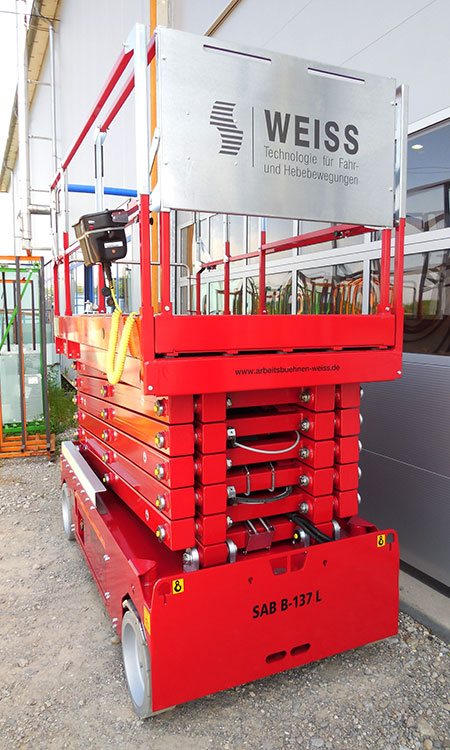

The well-known light version of the beloved SAB B-137 provides a simplified transport solution due to its significant reduction in weight. An advantage especially when frequently changing locations!
Total weight of the scissor lift SAB B-137 L (Light): 2850 kg
Working height up to 13.7 m / Platform size: 1.14 m x 2.5 m / Carrying capacity: up to 300 kg
Easy transport thanks to low total weight! Compared to the standard version, the weight was reduced by almost 20% or 660 kg .
"Light" version of the SAB B-137 with all the advantages of the B series for aerial platforms that frequently change location!
Working in limited space, extreme working heights, larger working platforms, special platform surfaces that the larger point loads of scissor lifts cannot withstand. Weiss GmbH technology for conveyor and hoisting systems produces small series of aerial platforms that are tailored to your needs.
The use of aerial platforms on surfaces that cannot withstand the point loading of conventional devices can be made a reality with caterpillar platforms. The caterpillar aerial platforms with their weight-distributing caterpillar treads are used particularly indoors on gym floors or even special stone coverings. The special abilities of the caterpillar aerial platform are also put to good use when crossing rough terrain.
Specific work environments take their toll on everything, including the equipment. The different safety standards in use must also be applied to the scissor lifts or transport devices. This may involve special temperature ranges or fluctuations, cleanroom environments or requirements regarding collision protection or explosion control standards.
In all areas of production the dimensions are designed to ensure optimal use of production factors. For example, with warehouse logistics the priority is using the available space in the best possible way - and this affects the requirements regarding vehicles, aerial platforms or transport equipment. Whether guided by rails, sensor-controlled or with a low turning radius - we will find an appropriate solution for our customers!

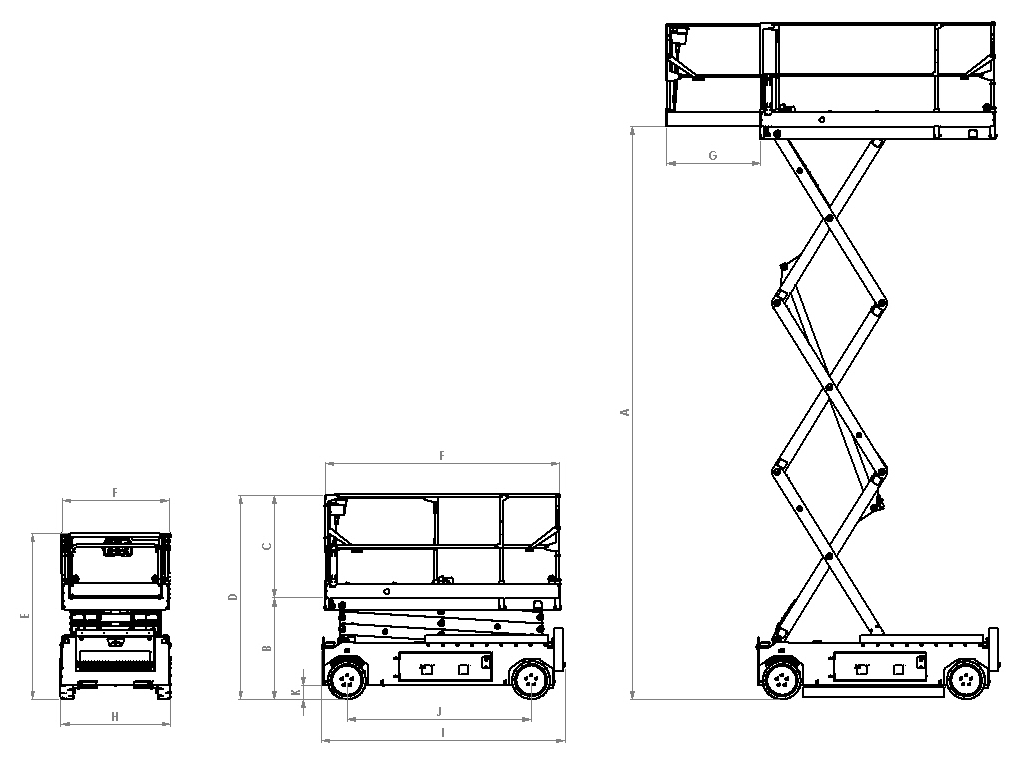

| Arbeitshöhe | 13,7 m |
| A.Plattform ausgefahren | 11,8 m |
| B.Plattform eingefahren | 1,46 m |
| C.Plattform – Geländerhöhe | 1,1 m |
| D.Durchfahrtshöhe | 2,56 m |
| E.(Geländer heruntergeklappt) | 2,15 m |
| F.Plattformgröße | 1,14 x 2,5 m |
| G.Plattformerweiterung | 0,9 m |
| H.Gesamtbreite | 1,18 m |
| I.Gesamtlänge (1) | 2,6 m |
| J.Radstand | 1,96 m |
| K.Bodenfreiheit | 145 mm |
| Lochfahrschutz ausgefahren | 20 mm |
| Tragfähigkeit Innenbereich | 300 kg, 2 Pers. |
| Tragfähigkeit Außenbereich | 300 kg, 1 Pers. |
| Tragfähigkeit der ausschiebbaren Plattform | 300 kg |
| Maximale Neigung | 2 Grad |
| Gesamtgewicht | 2.850 kg |
| Hebe-/Senkzeit | 58/52 sec. |
| Geschwindigkeit, eingefahren | 0 – 4 km/h |
| Geschwindigkeit, ausgefahren | 0 – 0,5 km/h |
| Steigfähigkeit | 25 % |
| Steuerung | Proportional |
| Antrieb | E-Heckmotor 2x1,7 kW |
| Wenderadius innen/außen | 87 ° |
| Bereifung – Größe/Art | 405 mm x 130 mm, nicht markierend |
| Batterie 24 V (4x6 Volt DC) (B 137 mit 8x6 Volt DC) | GiS 200 Ah/5h, GiS 240 Ah/20h |
| Batterieladegerät | 30 A |
(1) Länge inklusive Leiter
