maximum load: 12 t
limited production of custom design scissor lifts
made to customer's requirements and in small production runs
carrying capacity, power source, environment, space requirements - we can fulfil your wishes and requirements
with Mecanum drive

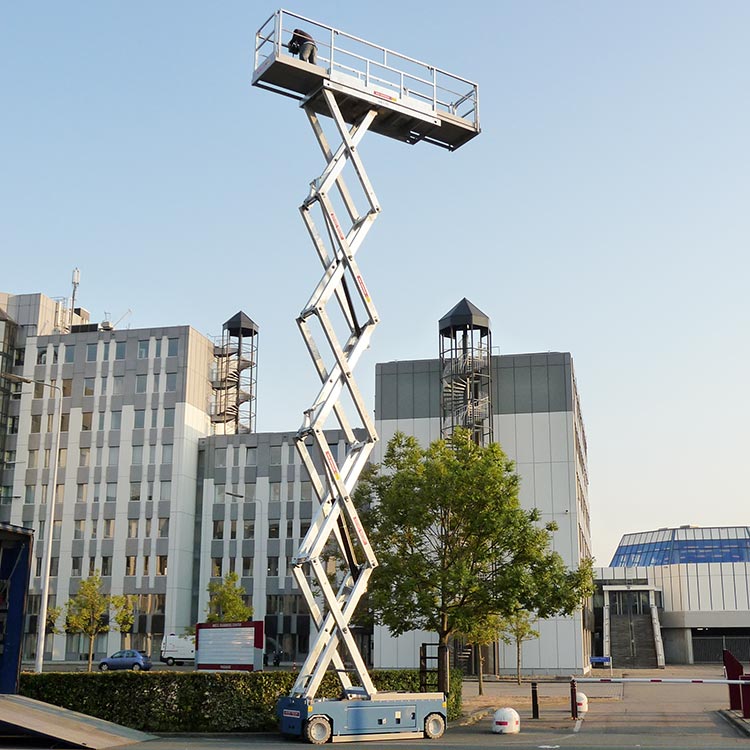

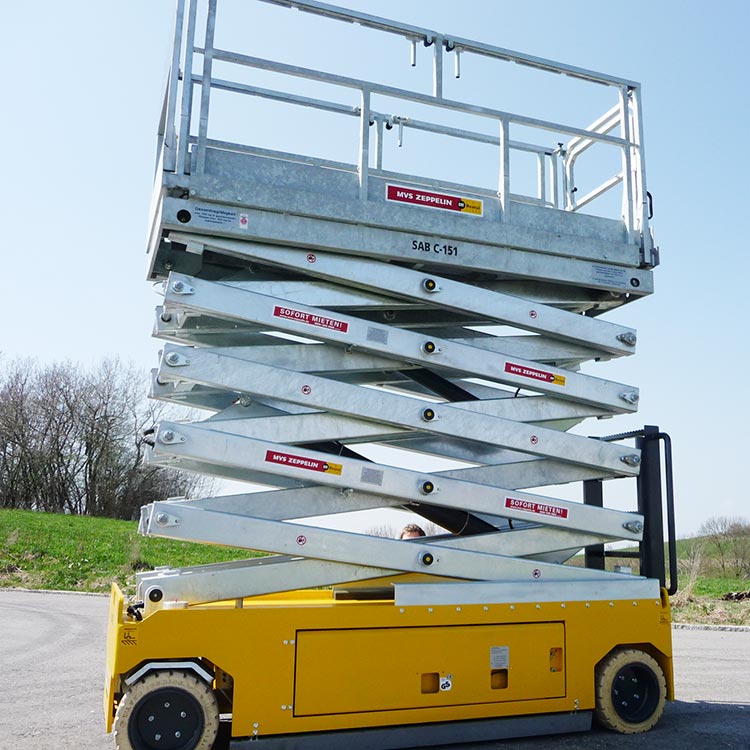

The smallest version of the robust and stable C series with a working height of 15.10 m is quite something to behold. This aerial platform undeniably covers a wide range in terms of height and areas of activity and application. With the optional platform extension you are working on a surface width of around 5 m! This saves time and money!
Working height up to 15.1 m / Platform size: 1.14 m x 2.95 m / Carrying capacity: up to 500 kg
Platforms of the upper class! Reliability and stability for working at high altitudes! Generous workspace on a larger platform.
Working height of 15.10 m meets most possible applications both indoors and outdoors. A reliable solution!
Working in limited space, extreme working heights, larger working platforms, special platform surfaces that the larger point loads of scissor lifts cannot withstand. Weiss GmbH technology for conveyor and hoisting systems produces small series of aerial platforms that are tailored to your needs.
The use of aerial platforms on surfaces that cannot withstand the point loading of conventional devices can be made a reality with caterpillar platforms. The caterpillar aerial platforms with their weight-distributing caterpillar treads are used particularly indoors on gym floors or even special stone coverings. The special abilities of the caterpillar aerial platform are also put to good use when crossing rough terrain.
Specific work environments take their toll on everything, including the equipment. The different safety standards in use must also be applied to the scissor lifts or transport devices. This may involve special temperature ranges or fluctuations, cleanroom environments or requirements regarding collision protection or explosion control standards.
In all areas of production the dimensions are designed to ensure optimal use of production factors. For example, with warehouse logistics the priority is using the available space in the best possible way - and this affects the requirements regarding vehicles, aerial platforms or transport equipment. Whether guided by rails, sensor-controlled or with a low turning radius - we will find an appropriate solution for our customers!
| Arbeitshöhe | 15,1 m |
| A. Plattform ausgefahren | 13,1 m |
| B. Plattform eingefahren | 1,92 m |
| C. Plattform – Geländerhöhe | 1,1 m |
| D. Durchfahrtshöhe | 3,03 m |
| E. (Geländer heruntergeklappt) | 2,32 m |
| F. Plattformgröße | 1,14 m x 2,95 m |
| G. Plattformerweiterung | 1 x 1,2 m |
| G. Plattformerweiterung optional | 2 x 1,2 m |
| H. Gesamtbreite | 1,19 m |
| I. Gesamtlänge | 3,2 m/3,4 ² m |
| J. Radstand | 2,47 m |
| K. Bodenfreiheit | 150 mm |
| Lochfahrschutz ausgefahren | 35 mm |
| Tragfähigkeit Innenbereich | 500 kg, 2 Pers. |
| Tragfähigkeit Außenbereich | 300 kg, 1 Pers. |
| Tragfähigkeit der ausschiebbaren Plattform | 500 kg |
| Maximale Neigung | 2 Grad |
| Gesamtgewicht | 5.750 kg/6.050 kg ² |
| Hebe-/Senkzeit | 68/63 sec. |
| Geschwindigkeit, eingefahren | 0 – 4 km/h |
| Geschwindigkeit, ausgefahren | 0 – 0,7 km/h |
| Steigfähigkeit | 25 % |
| Steuerung | proportional |
| Antrieb | E-Heckmotor 2 x 3 kW |
| Wenderadius innen/außen | 87 ° |
| Bereifung – Größe/Art | 463 mm x 205 mm, nicht markierend |
| Batterie 48 V (8 x 6 Volt DC) | GiS 285 Ah/5 h GiS 335 Ah/20 h |
| Batterieladegerät | 48 V/50 A |
(1) Länge inklusive Leiter
(2) Nur in Verbindung mit hydraulischer Abstützung
