maximum load: 12 t
limited production of custom design scissor lifts
made to customer's requirements and in small production runs
carrying capacity, power source, environment, space requirements - we can fulfil your wishes and requirements
with Mecanum drive

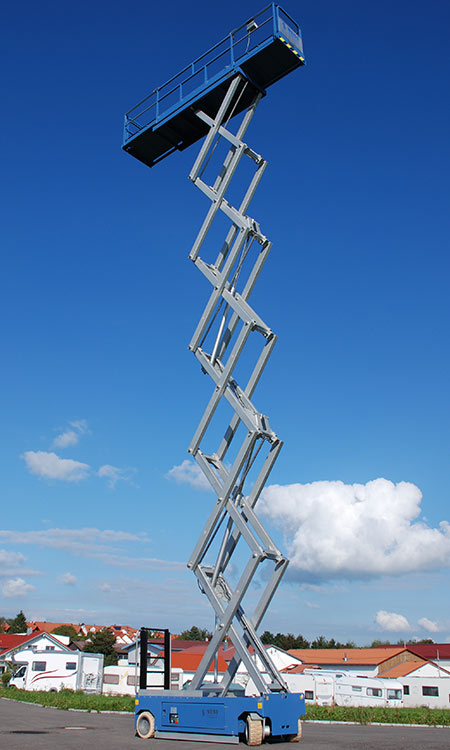

The largest of the Weiss C series and for our customers THE largest in terms of height, range of applications and safety. If you're working at these heights you will appreciate the robust and stable design, reliability and trust!
Working height up to 20.0 m / Platform size: 1.14 m x 2.95 m / Carrying capacity: up to 400 kg
Its quality and charisma will convince you! A scissor lift for "highest" requirements.
Working in limited space, extreme working heights, larger working platforms, special platform surfaces that the larger point loads of scissor lifts cannot withstand. Weiss GmbH technology for conveyor and hoisting systems produces small series of aerial platforms that are tailored to your needs.
The use of aerial platforms on surfaces that cannot withstand the point loading of conventional devices can be made a reality with caterpillar platforms. The caterpillar aerial platforms with their weight-distributing caterpillar treads are used particularly indoors on gym floors or even special stone coverings. The special abilities of the caterpillar aerial platform are also put to good use when crossing rough terrain.
Specific work environments take their toll on everything, including the equipment. The different safety standards in use must also be applied to the scissor lifts or transport devices. This may involve special temperature ranges or fluctuations, cleanroom environments or requirements regarding collision protection or explosion control standards.
In all areas of production the dimensions are designed to ensure optimal use of production factors. For example, with warehouse logistics the priority is using the available space in the best possible way - and this affects the requirements regarding vehicles, aerial platforms or transport equipment. Whether guided by rails, sensor-controlled or with a low turning radius - we will find an appropriate solution for our customers!

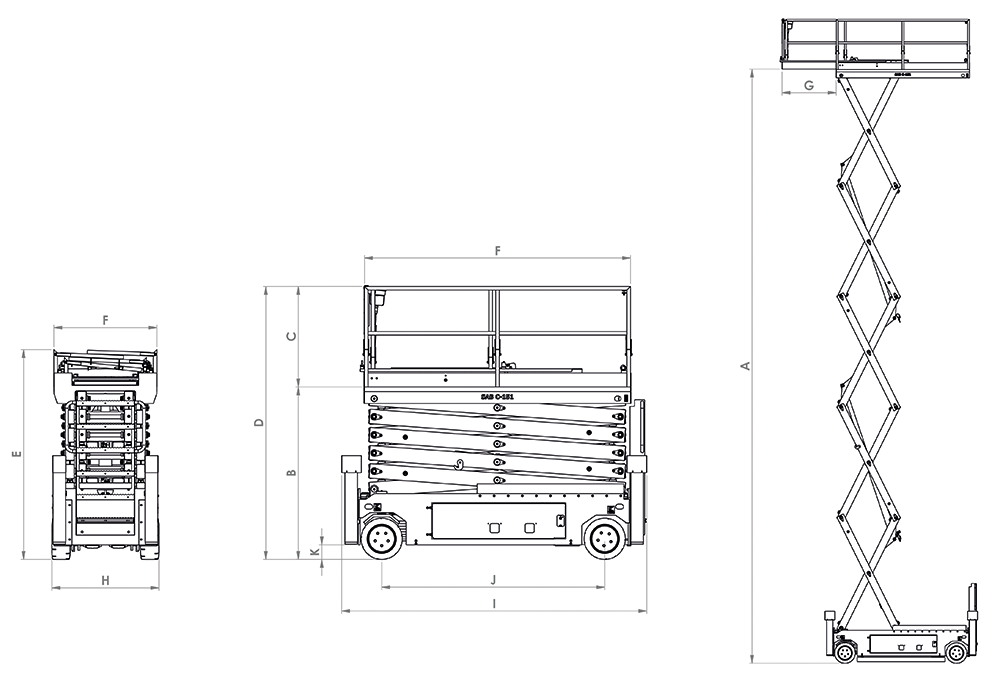

| Arbeitshöhe | 20,0 m |
| A.Plattform ausgefahren | 18,0 m |
| B.Plattform eingefahren | 2,32 m |
| C.Plattform – Geländerhöhe | 1,1 m |
| D.Durchfahrtshöhe | 3,43 m |
| E.(Geländer heruntergeklappt) | 2,72 m |
| F.Plattformgröße | 1,14 m x 2,95 m |
| G.Plattformerweiterung | 1x1,2 m |
| G. Plattformerweiterung optional | 2x1,2 m |
| H.Gesamtbreite | 1,19 m |
| I.Gesamtlänge (1) | 3,2 m/3,4 m (2) |
| J.Radstand | 2,47 m |
| K.Bodenfreiheit | 150 mm |
| Lochfahrschutz ausgefahren | 35 mm |
| Tragfähigkeit Innenbereich | 400 kg, 2 Pers. |
| Tragfähigkeit Außenbereich | 300 kg, 1 Pers. (2) |
| Tragfähigkeit der ausschiebbaren Plattform | 400 kg |
| Maximale Neigung | 2 Grad |
| Gesamtgewicht | 6.400 kg/6.700 kg (2) |
| Hebe-/Senkzeit | 90/84 sec. |
| Geschwindigkeit, eingefahren | 0 – 4 km/h |
| Geschwindigkeit, ausgefahren | 0 – 0,7 km/h |
| Steigfähigkeit | 25 % |
| Steuerung | proportional |
| Antrieb | E-Heckmotor 2x3 kW |
| Wenderadius innen/außen | 87 ° |
| Bereifung – Größe/Art | 463 mm x 205 mm, nicht markierend |
| Batterie 48 V (8 x 6 Volt DC) | GiS 285 Ah/5 h, GiS 335 Ah/20 h |
| Batterieladegerät | 48 V/50 A |
(1) Länge inklusive Leiter
(2) Nur in Verbindung mit hydraulischer Abstützung
